30 YEARS OF CABLE MANUFACTURING EXPERIENCES
Mr. Charles Sun, the founder and CEO of XFS, spent his earlier career at Pacific Electric Wire & Cable Company, then the largest copper cable company in Taiwan.
In 80’s, Mr. Sun was assigned to Nokia Cable for transferring the fiber cable manufacturing technology from Finland to Taiwan, and later built Taiwan’s first fiber cable production line.
Mr. Sun is one of the most seasoned fiber cable experts in Greater China, and has been dedicated his energy into the production of high quality fiber cable and assemblies for decades.
Today, XFS itself and its partnered fiber cable company can produce 1,200 core-km of high quality fiber cable per day.
IN ORDER TO BETTER CONTROL THE QUALITY AND SHORTEN THE DELIVERY TIME, WE INSIST TO MANUFACTURE BY OURSELVES THE FIBER CABLES USED IN OUR CONNECTIVITY PRODUCTS.
- Charles Sun, CEO

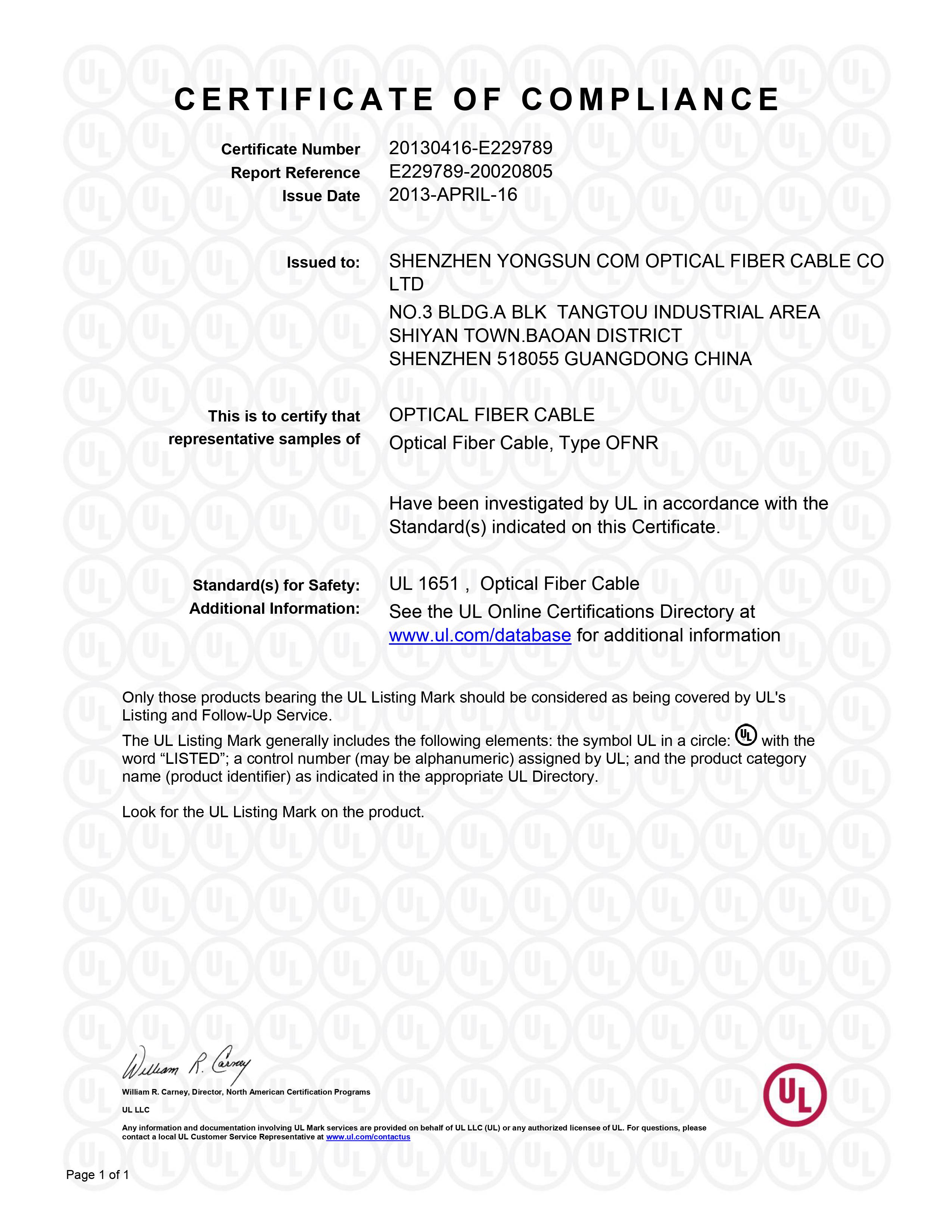

UL CERTIFICATE

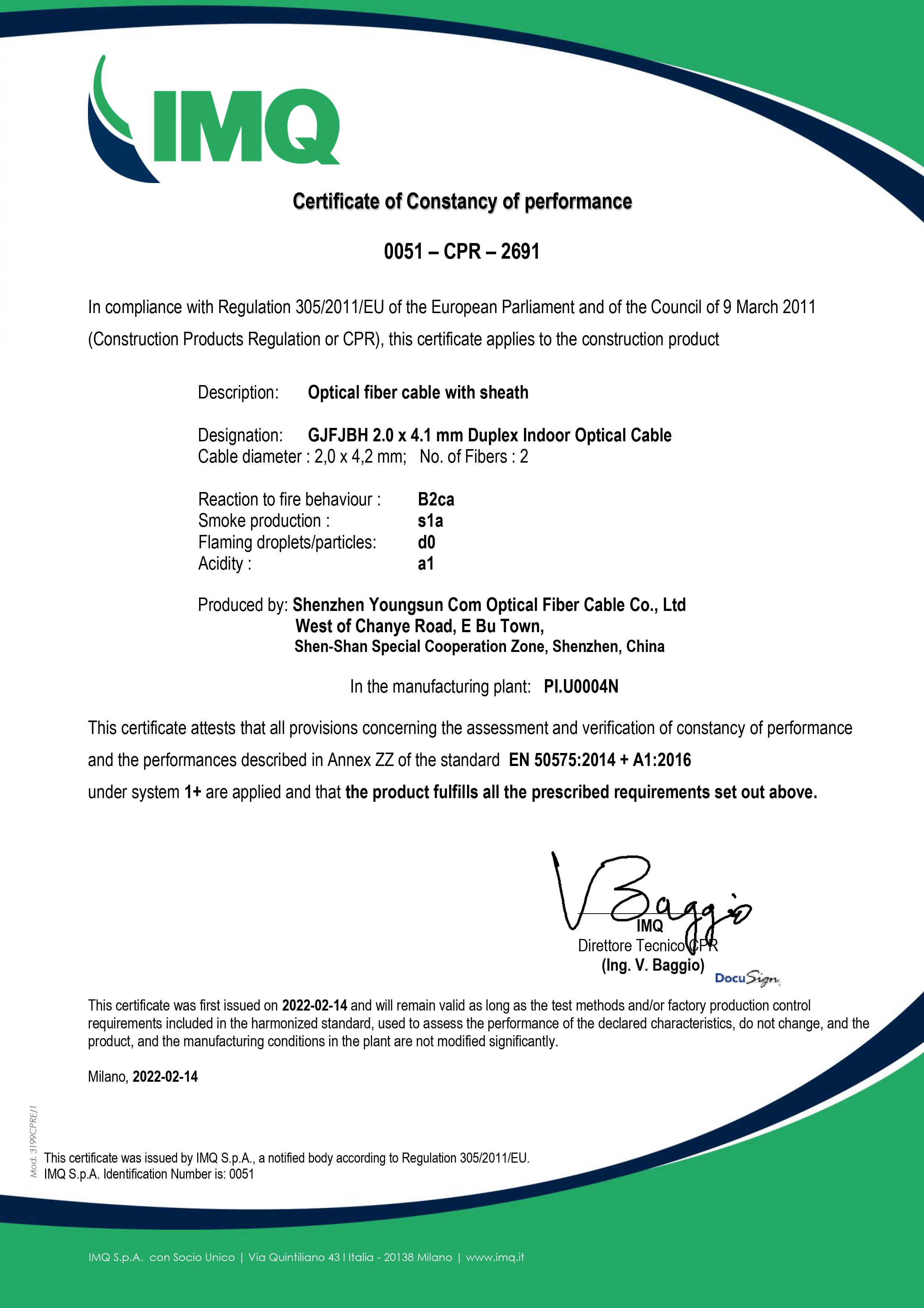

CPR CERTIFICATE
PRODUCT LIST

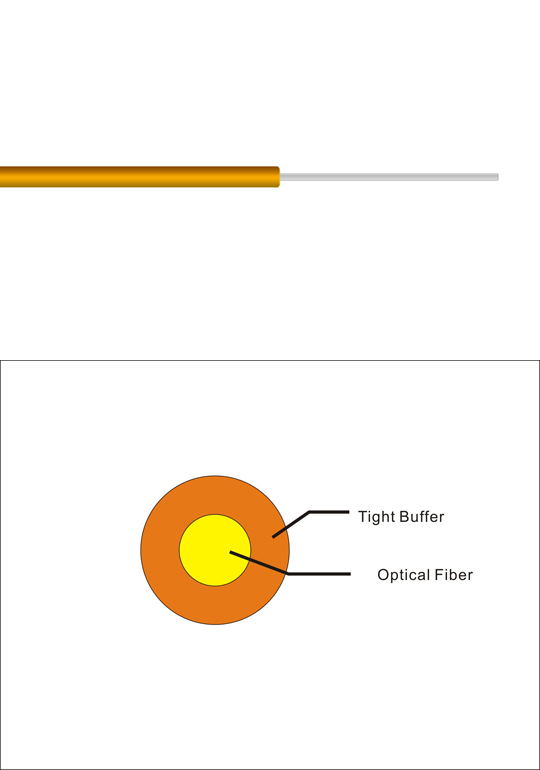

TIGHT BUFFERED CABLE
LEARN MORE
TIGHT BUFFERED CABLE
| Fiber Count | Outer Diameter (mm) | Nominal Weight (Kg/km) | Min. Bending Radius (mm) | Max. Tensile Strength (N) | ||
|---|---|---|---|---|---|---|
| Dynamic | Static | Short-term | Long-term | |||
| 1 | 0.9 | 0.9 | 20D | 10D | 6.0 | 3.0 |

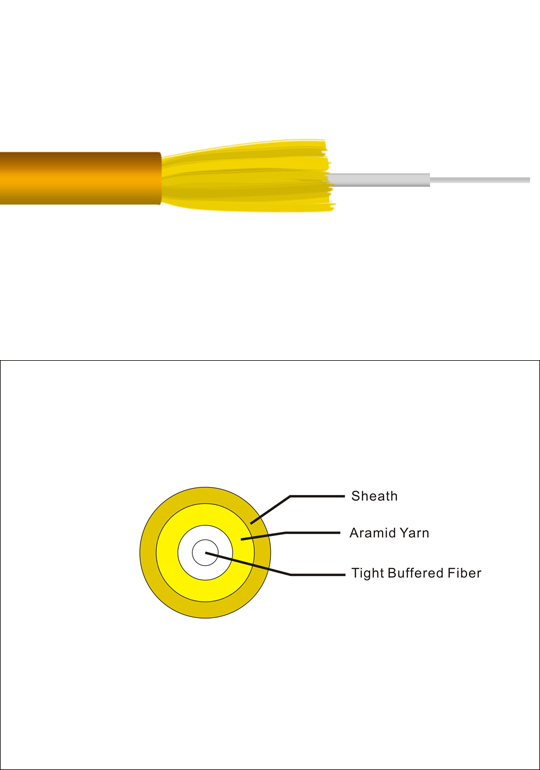

INDOOR SIMPLEX CABLE
LEARN MORE
INDOOR SIMPLEX CABLE
| Fiber Count | 1 | |||||
|---|---|---|---|---|---|---|
| Outer Diameter (mm) | 1.6 | 1.8 | 2.0 | 2.4 | 3.0 | |
| Nominal Weight (Kg/km) | 2.9 | 3.2 | 3.5 | 5.0 | 6.8 | |
| Max. Tensile Strength(N) | Short-term | 80 | 80 | 100 | 100 | 150 |
| Long-term | 40 | 40 | 60 | 60 | 80 | |
| Min. Bending Radius (mm) | Dynamic | 20D | ||||
| Static | 10D | |||||
| Max. Crush Resistance (N/100mm2) | 500 | |||||

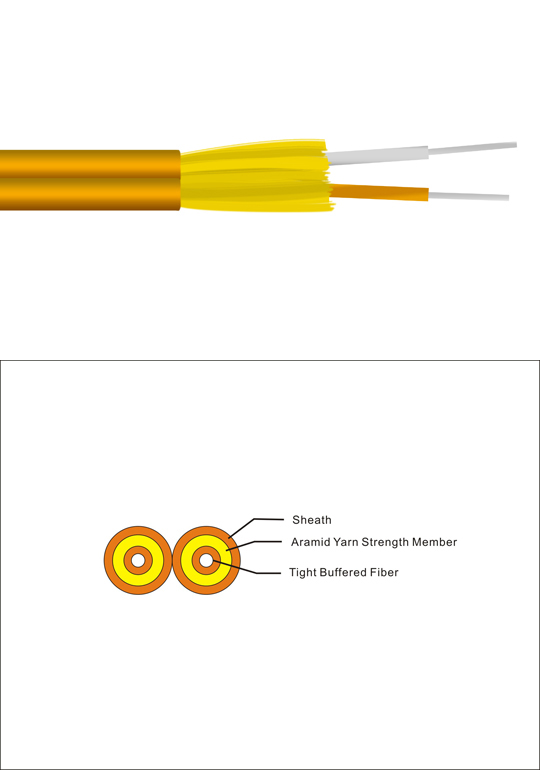

INDOOR DUPLEX ZIPCORD CABLE
LEARN MORE
INDOOR DUPLEX ZIPCORD CABLE
| Fiber Count | 2 | ||||
|---|---|---|---|---|---|
| Outer Diameter D*H (mm) | 1.6*3.3 | 1.8*3.7 | 2.0*4.1 | 2.8*5.7 | |
| Nominal Weight (Kg/km) | 5.7 | 6.7 | 8.2 | 13.2 | |
| Max. Tensile Strength (N) | Short-term | 160 | 160 | 200 | 300 |
| Long-term | 80 | 80 | 100 | 160 | |
| Min. Bending Radius (mm) | Dynamic | 20H | |||
| Static | 10H | ||||
| Max. Crush Resistance (N/100mm2) | 1000 | ||||

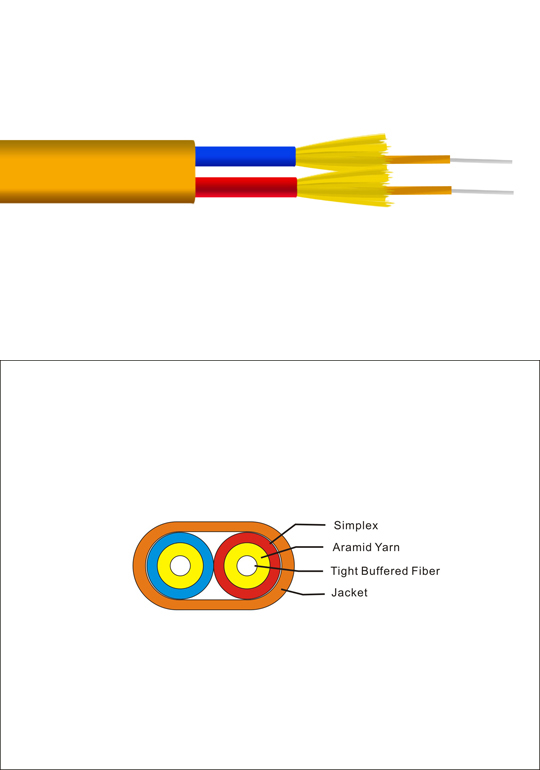

INDOOR FLAT TWIN DUPLEX CABLE
LEARN MORE
INDOOR FLAT TWIN DUPLEX CABLE
| Fiber Count | 2 | ||
|---|---|---|---|
| Outer Diameter D*H (mm)±0.2mm | 4.0*7.0 | 3.1*5.2 | |
| Nominal Weight (Kg/km) | 31 | 18 | |
| Max. Tensile Strength (N) | Short-term | 200 | 300 |
| Long-term | 100 | 160 | |
| Min. Bending Radius (mm) | Dynamic | 20H | |
| Static | 10H | ||
| Max. Crush Resistance (N/100mm2) | 1000 | ||

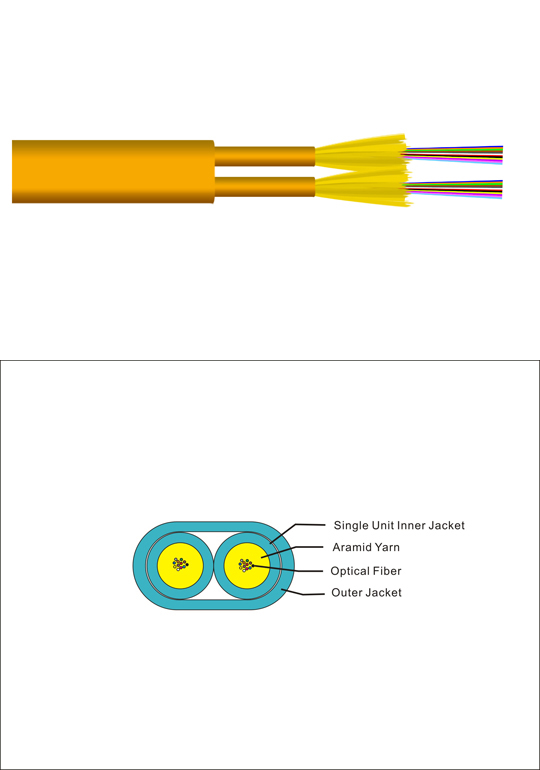

24-FIBER FANOUT CABLE
LEARN MORE
24-FIBER FANOUT CABLE
| Fiber Count | 24 | |
|---|---|---|
| Outer Diameter (mm) | 4.2±0.3 x 7.6±0.4 | |
| Nominal Weight (Kg/km) | 30 | |
| Max. Tensile Strength (N) | Short-term | 300 |
| Long-term | 160 | |
| Min. Bending Radius (mm) | Dynamic | 20H |
| Static | 10H | |
| Max. Crush Resistance (N/100mm2) | 1000 | |

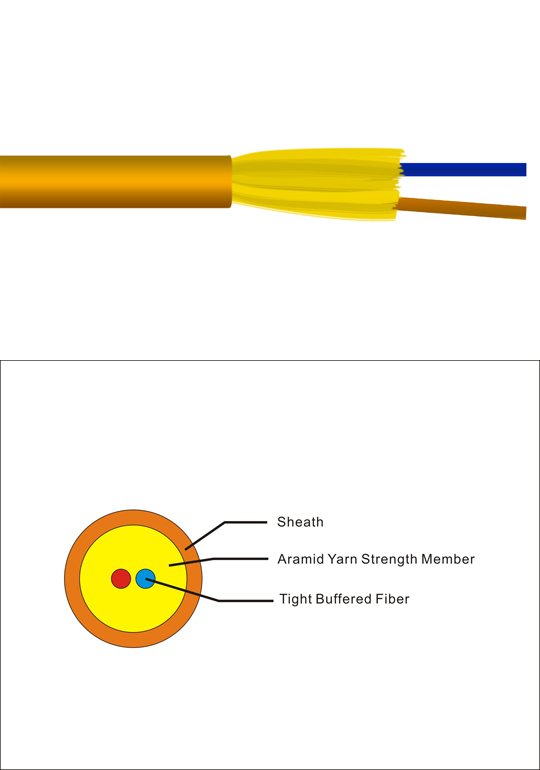

INDOOR DUPLEX ROUND CABLE
LEARN MORE
INDOOR DUPLEX ROUND CABLE
| Fiber Count | 2 | ||
|---|---|---|---|
| Outer Diameter (mm) | 3.0 | 5.0 | |
| Nominal Weight (Kg/km) | 7.6 | 19 | |
| Max. Tensile Strength (N) | Short-term | 80 | 160 |
| Long-term | 40 | 80 | |
| Min. Bending Radius (mm) | Dynamic | 20D | |
| Static | 10D | ||
| Max. Crush Resistance (N/100mm2) | 500 | ||

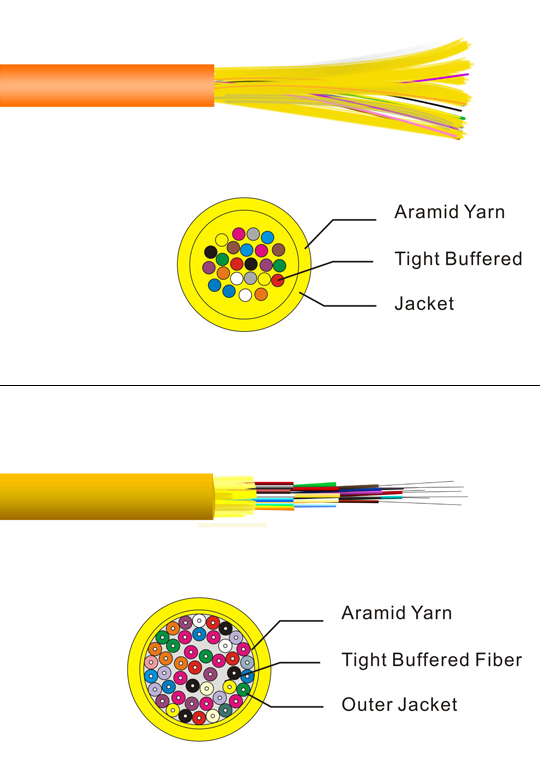

4- TO 48-CORE INDOOR CABLE
LEARN MORE
4- TO 48-CORE INDOOR CABLE
| Fiber Count | 4 | 6 | 8 | 12 | 16 | 24 | 48 | |
|---|---|---|---|---|---|---|---|---|
| Outer Diameter (mm) | 4.8±0.2 | 5.2±0.2 | 6.2±0.2 | 6.8±0.2 | 7.4±0.4 | 8.2±0.4 | 12.5±0.5 | |
| Nominal Weight (Kg/km) | 19 | 23 | 29 | 38 | 48 | 60 | 128 | |
| Max. Tensile Strength (N) | Short-term | 270 | 330 | 480 | 600 | 660 | 720 | 1200 |
| Long-term | 90 | 110 | 160 | 200 | 220 | 240 | 520 | |
| Min. Bending Radius (mm) | Dynamic | 20D | ||||||
| Static | 10D | |||||||
| Max. Crush Resistance (N/100mm2) | 1000 | |||||||

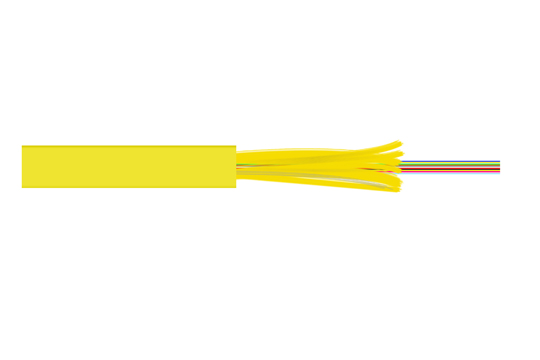

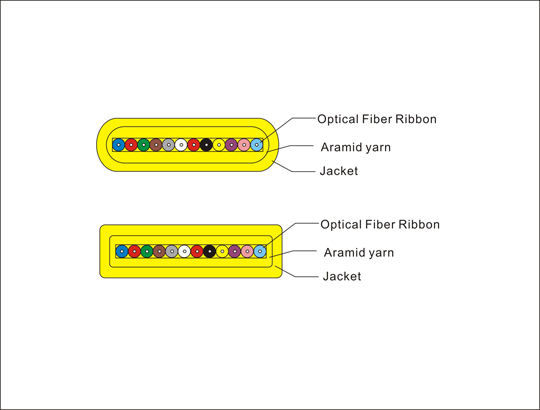

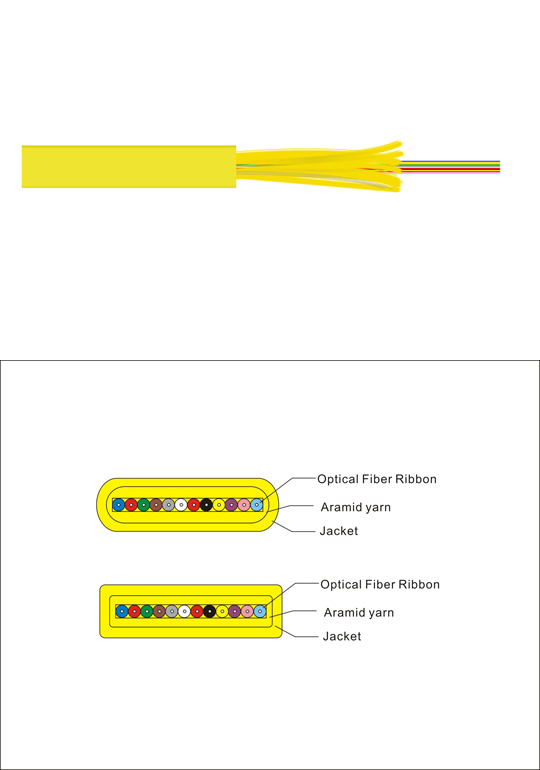

INDOOR RIBBON FLAT CABLE
LEARN MORE
INDOOR RIBBON FLAT CABLE
| Fiber Count | 4 | 6 | 8 | 12 | |
|---|---|---|---|---|---|
| Outer Diameter D x H(mm)±0.3mm | 3.2x2.2 | 3.6x2.3 | 3.8x2.3 | 5.1x2.3 | |
| Nominal Weight (Kg/km) | 7.4 | 8.0 | 8.5 | 10.0 | |
| Max. Tensile Strength (N) | Short-term | 150 | |||
| Long-term | 80 | ||||
| Min. Bending Radius (mm) | Dynamic | 60 | |||
| Static | 30 | ||||
| Max. Crush Resistance (N/100mm2) | 500 | ||||
| Fiber Count | 4 | 6 | 8 | 12 | |
|---|---|---|---|---|---|
| Outer Diameter DxH (mm)±0.3mm | 3.5x2.5 | 3.8x2.5 | 4.5x2.5 | 5.0x2.5 | |
| Nominal Weight (Kg/km) | 12 | 13 | 15 | 17 | |
| Max. Tensile Strength (N) | Short-term | 200 | |||
| Long-term | 80 | ||||
| Min. Bending Radius (mm) | Dynamic | 35H | |||
| Static | 25H | ||||
| Max. Crush Resistance (N/100mm2) | 500 | ||||

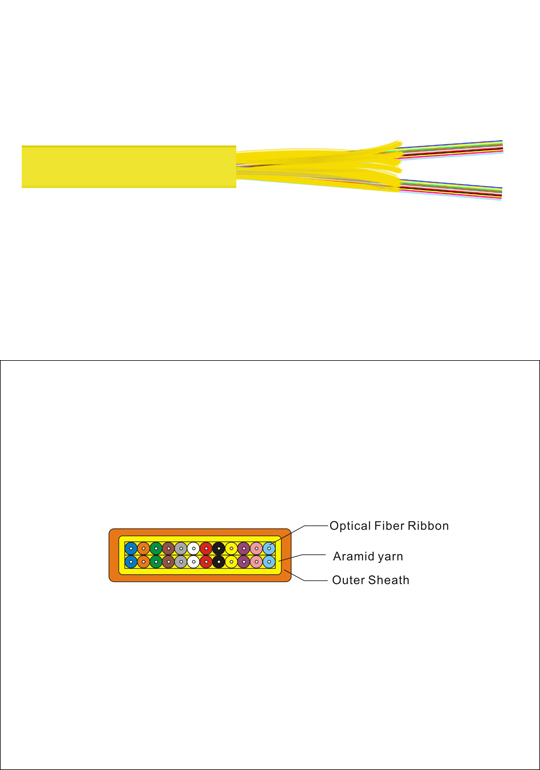

INDOOR 24-CORE RIBBON CABLE
LEARN MORE
INDOOR 24-CORE RIBBON CABLE
| Fiber Count | Outer Diameter (mm) | Nominal Weight (Kg/km) | Min. Bending Radius (mm) | Max. Tensile Strength (N) | |||
|---|---|---|---|---|---|---|---|
| Width | Height | Dynamic | Static | Short-term | Long-term | ||
| 24 | 5.0±0.5 | 2.9±0.3 | 16 | 50 | 35 | 150 | 80 |

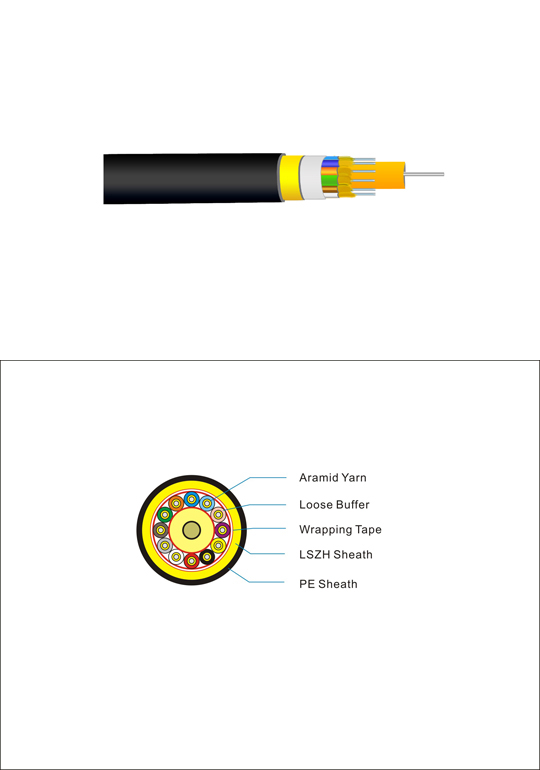

INDOOR/OUTDOOR 12-CORE CABLE
LEARN MORE
INDOOR/OUTDOOR 12-CORE CABLE
| Fiber Count | 12 | |
|---|---|---|
| Outer Diameter (mm) | 8.4±0.2 | |
| Nominal Weight (Kg/km) | 67 | |
| Max. Tensile Strength (N) | Short-term | 600 |
| Long-term | 200 | |
| Min. Bending Radius (mm) | Dynamic | 25D |
| Static | 15D | |
| Max. Crush Resistance (N/100mm2) | 1000 | |

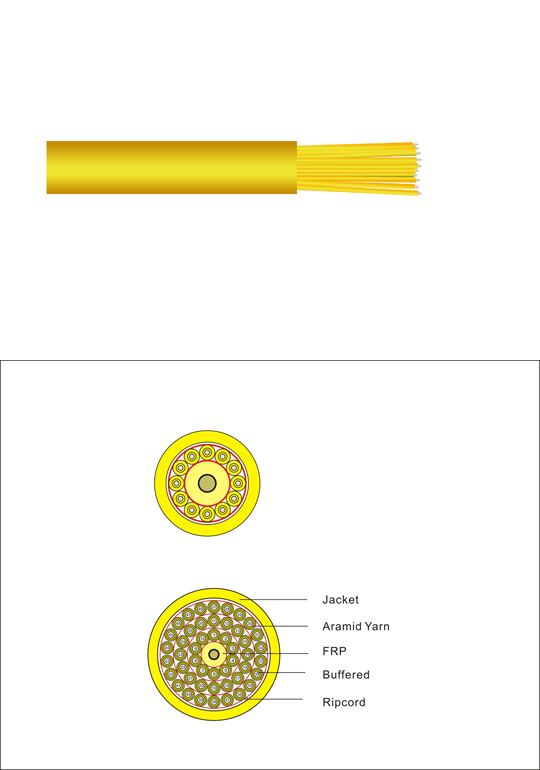

MULTI-CORE FANOUT CABLE
LEARN MORE
MULTI-CORE FANOUT CABLE
| Fiber Count | 4 | 6 | 8 | 12 | 24 | 48 | |
|---|---|---|---|---|---|---|---|
| Outer Diameter (mm) | 7.5±0.5 | 9.0±0.5 | 10.5±0.5 | 12.5±0.5 | 15.5±0.5 | 20.5±0.5 | |
| Nominal Weight (Kg/km) | 51 | 68 | 88 | 128 | 198 | 246 | |
| Max. Tensile Strength (N) | Short-term | 660 | 700 | 800 | 1200 | 1200 | 1800 |
| Long-term | 200 | 200 | 250 | 400 | 400 | 600 | |
| Min. Bending Radius (mm) | Dynamic | 20D | |||||
| Static | 10D | ||||||
| Max. Crush Resistance (N/100mm2) | Short-term | 1000 | |||||
| Long-term | 300 | ||||||

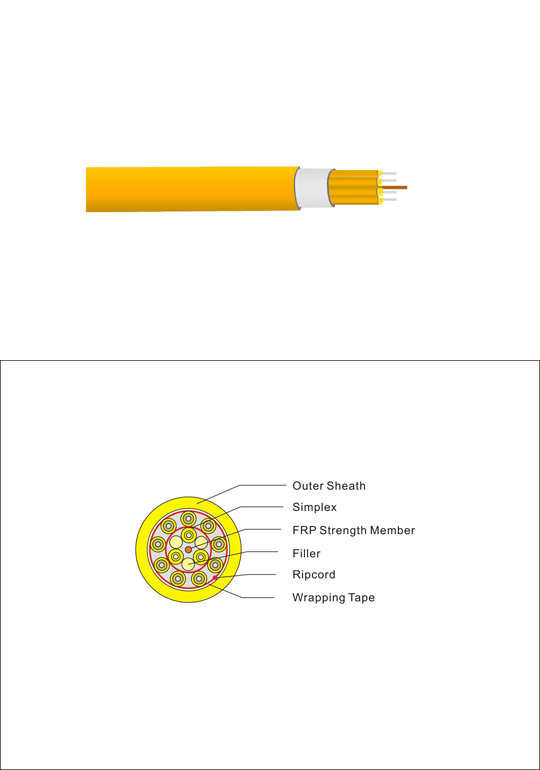

12-CORE FANOUT CABLE (TYPE A)
LEARN MORE
12-CORE FANOUT CABLE (TYPE A)
| Fiber Count | Outer Diameter (mm) | Nominal Weight (Kg/km) | Max. Tensile Strength (N) | Max. Crush Resistance (N/100mm2) | ||
|---|---|---|---|---|---|---|
| Short-term | Long-term | Short-term | Long-term | |||
| 12 | 10.5±0.5 | 84 | 600 | 200 | 1000 | 300 |

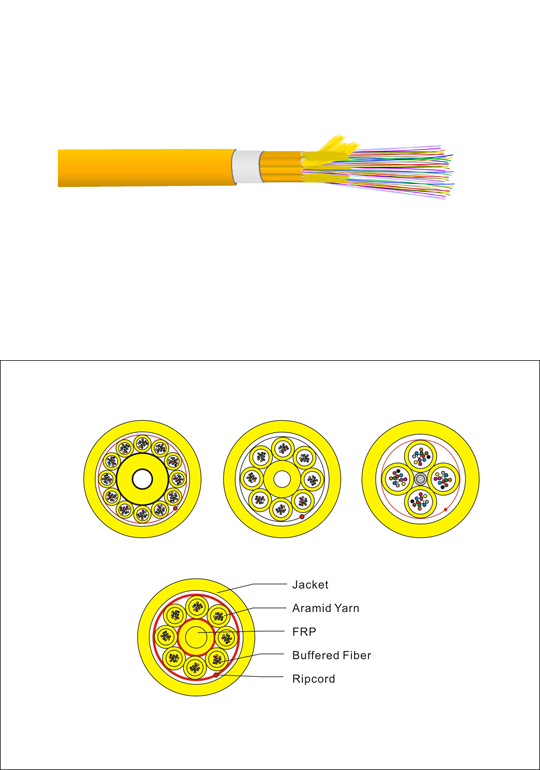

144-CORE FANOUT CABLE
LEARN MORE
144-CORE FANOUT CABLE
| Fiber Count | Outer Diameter (mm) | Nominal Weight (Kg/km) | Max. Tensile Strength (N) | Max. Crush Resistance (N/100mm2) | ||
|---|---|---|---|---|---|---|
| Short-term | Long-term | Short-term | Long-term | |||
| 16Core In 4 Units | 13.0±0.5 | 240 | 1000 | 400 | 1000 | 300 |
| 24Core In 4 Units | 15.5±0.5 | 265 | 1200 | 400 | 1000 | 300 |
| 36Core In 6 Units | 18.8±0.8 | 350 | 1500 | 500 | 1000 | 300 |
| 48Core In 4 Units | 17.0±0.8 | 305 | 1200 | 400 | 1000 | 300 |
| 48Core In 6 Units | 20.0±0.8 | 410 | 1500 | 500 | 1000 | 300 |
| 72Core In 6 Units | 21.0±0.8 | 445 | 1500 | 500 | 1000 | 300 |
| 96Core In 6 Units | 25.8±0.8 | 500 | 1500 | 500 | 1000 | 300 |
| 108Core In 6 Units | 26.2±0.8 | 545 | 1500 | 500 | 1000 | 300 |
| 144Core In 6 Units | 28.2±0.8 | 670 | 1500 | 500 | 1000 | 300 |
| 144Core In 12 Units | 28.2±0.8 | 675 | 1500 | 500 | 1000 | 300 |

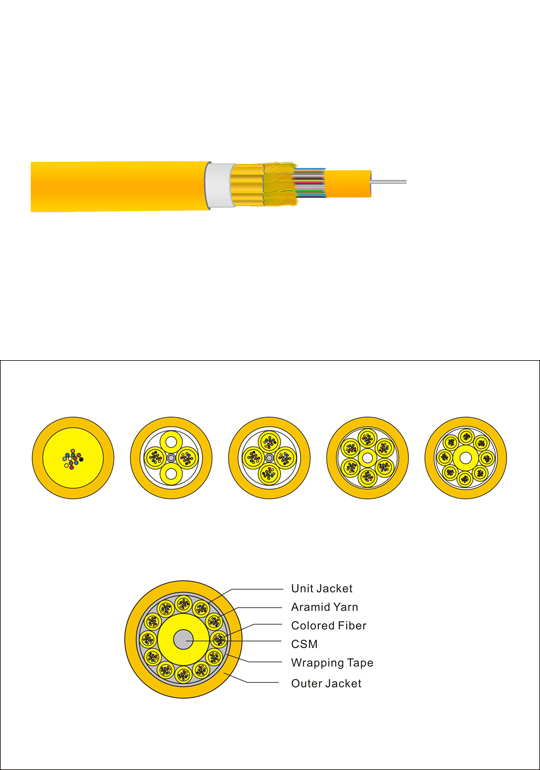

288-CORE MINI BREAKOUT CABLE
LEARN MORE
288-CORE MINI BREAKOUT CABLE
| Fiber Count | 12 | 24 | 24 | 48 | 72 | 96 | 144 | |
|---|---|---|---|---|---|---|---|---|
| Construction | GJFJV(Y) | GJFJBV(Y) Flat | GJFJV(Y) Round | GJFJV(Y) | GJFJV(Y) | GJFJV(Y) | GJFJV(Y) | |
| Outer Diameter (mm) | 3.0±0.15 | 4.2±0.3 x 7.6±0.4 | 9.0±0.5 | 9.0±0.5 | 11.2±0.5 | 13.5±0.5 | 175±0.5 | |
| Nominal Weight (Kg/km) | 7.8 | 31 | 72 | 79 | 126 | 178 | 285 | |
| Max. Tensile Strength (N) | Short-term | 150 | 300 | 300 | 600 | 1000 | 1000 | 1000 |
| Long-term | 80 | 160 | 160 | 200 | 300 | 300 | 300 | |
| Min. Bending Radius (mm) | Dynamic | 30D | 30H | 30D | 30D | 30D | 30D | 30D |
| Static | 15D | 15H | 15D | 15D | 15D | 15D | 15D | |
| Max. Crush Resistance (N/100mm2) | Short-term | 500 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Long-term | 150 | 300 | 300 | 300 | 300 | 300 | 300 | |

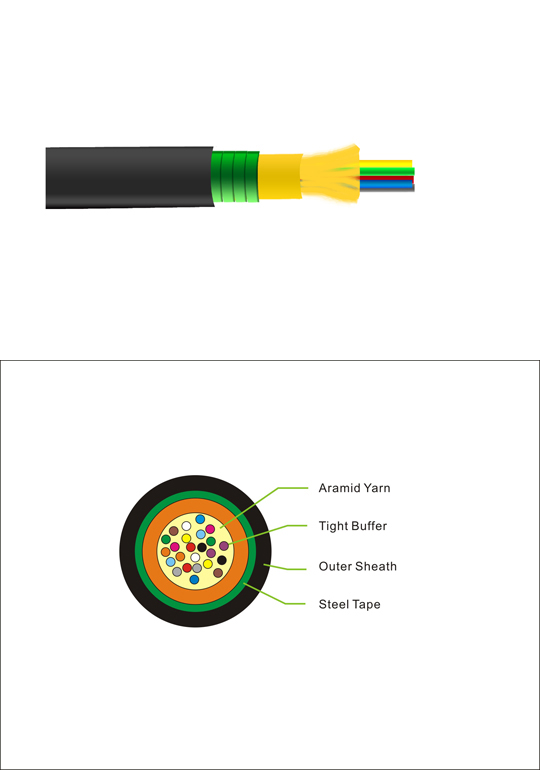

DISTRIBUTION CABLE WITH STEEL ARMOUR
LEARN MORE
DISTRIBUTION CABLE WITH STEEL ARMOUR
| Fiber Count | Outer Diameter (mm) | Nominal Weight (Kg/km) | Max. Tensile Strength (N) | Max. Crush Resistance (N/100mm2) | ||
|---|---|---|---|---|---|---|
| Short-term | Long-term | Short-term | Long-term | |||
| 6 | 10.5±0.5 | 92 | 500 | 170 | 1000 | 300 |
| 8 | 10.5±0.5 | 96 | 500 | 170 | 1000 | 300 |
| 12 | 13.0±0.5 | 139 | 700 | 230 | 1000 | 300 |
| 16 | 13.0±0.5 | 145 | 700 | 230 | 1000 | 300 |

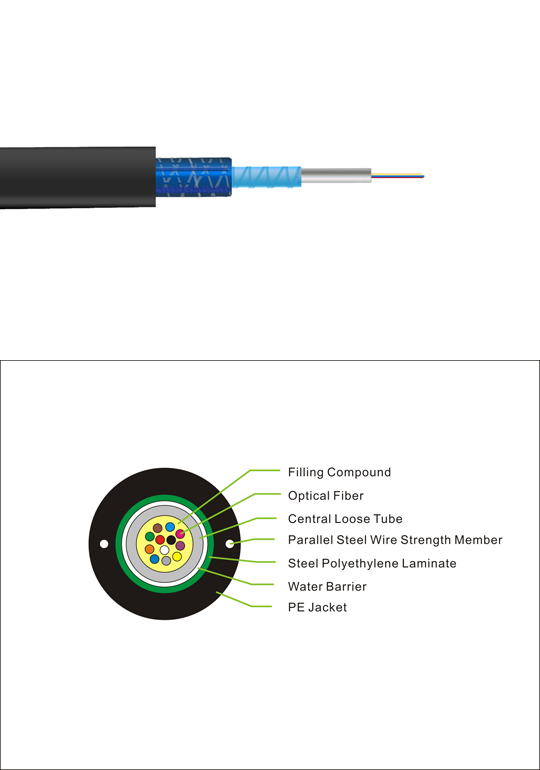

ARMOURED LOSE TUBE CABLE
LEARN MORE
ARMOURED LOSE TUBE CABLE
| Fiber Count | 2, 4, 6, 8 | 10, 12 | |
|---|---|---|---|
| Outer Diameter (mm) | 8.3 | 9.0 | |
| Nominal Weight (Kg/km) | 66 | 82 | |
| Max. Tensile Strength (N) | Short-term | 1500 | |
| Long-term | 600 | ||
| Min. Bending Radius (mm) | Dynamic | 20D | |
| Static | 10D | ||
| Max. Crush Resistance (N/100mm2) | 3000 | ||

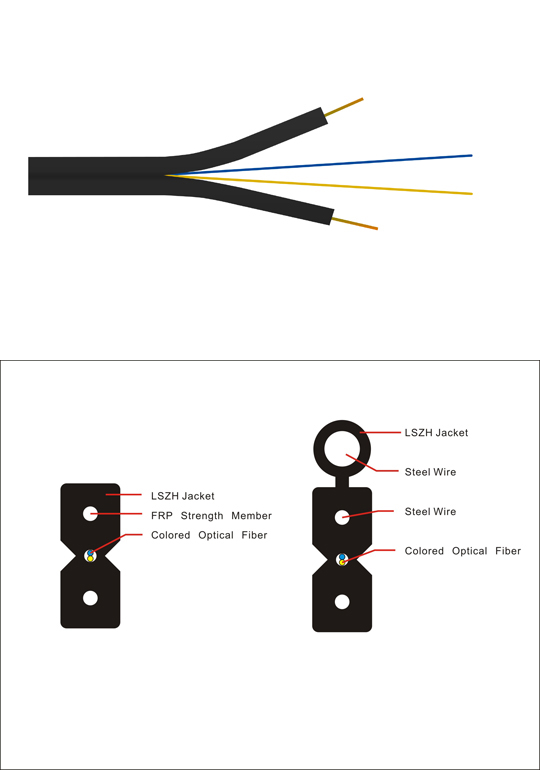

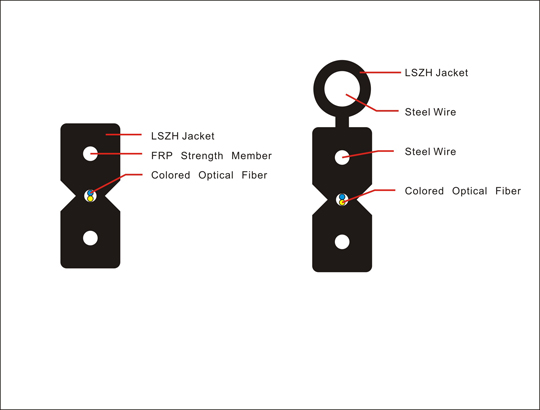

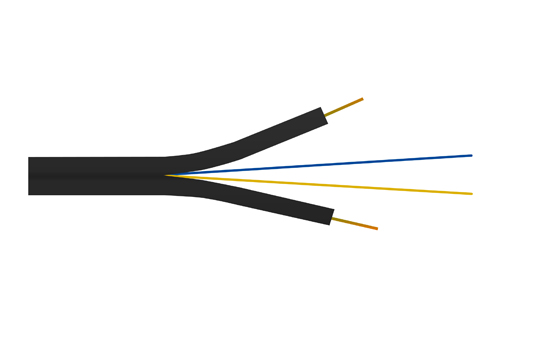

FTTH CABLE
LEARN MORE
FTTH CABLE
| Fiber Count | Outer Diameter (mm)±0.2mm | Nominal Weight (Kg/km) | Min. Bending Radius (mm) | |
|---|---|---|---|---|
| Dynamic | Static | |||
| 1 | 3.1x1.9 | 9 | 20H | 10H |
| 2 | 3.1x1.9 | 9 | 20H | 10H |
| Fiber Count | Outer Diameter(mm)±0.2mm | Nominal Weight (Kg/km) | Min. Bending Radius (mm) | |
|---|---|---|---|---|
| Dynamic | Static | |||
| 2 | 5.0x2.0 | 20 | 20H | 10H |
