FIELD INSTALLABLE CONNECTORS & FIELD POLISHING TOOL

Powered by   NTT-AT


Polish without using water!!

The palm-sized field polishing tool does not need electrical power, and can do both PC polishing or APC polishing for quickly & easily assembling connectors at the work site!



FEATURES

Ideal for FTTH construction sites such as closures and in-home terminal connections. With APC polishing, it can achieve a return loss of more than 65dB. The product also gives superior environmental reliability than the mechanical splice type field installable connectors.



Installing Connectors Quickly and Easily

Simply insert the fiber into the specialized connector part, position it using the tool, then polish using the drawstring-operated field polishing tool. The operation is completed with just 3 easy steps!



Field Polishing is Fast & Simple, and No Need of Water and Electrical Power

Polishing liquid and water are not needed, and one polishing (one drawstring pull) takes less than 5 seconds. Since the connector’s ferrule end-face is pre-polished, APC polishing is completed with only 1-time drawstring pull, and PC polishing with 2-times drawstring pull. The polishing films can be re-used for 4 times.



Excellent Optical Performance & Environmental Resistance

A high return loss of 50dB or more for PC type and 65dB or more for APC type, and a connection loss of less than 0.3dB are realized. Unlike the mechanical splice type, the product does not use a refractive index matching agent, so it has excellent environmental reliability.

PRODUDCT SPECIFICATIONS

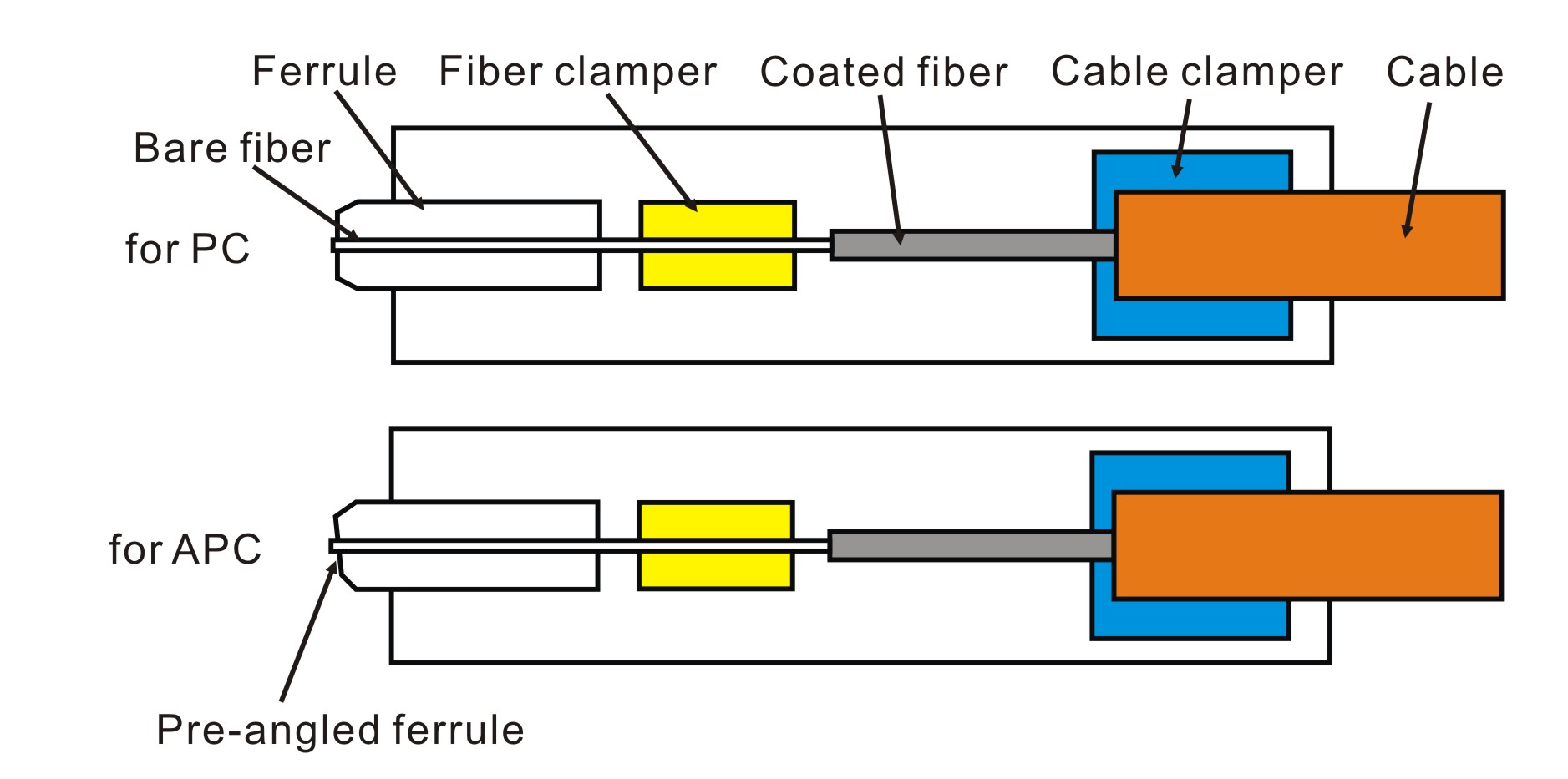

The Structure of Connector

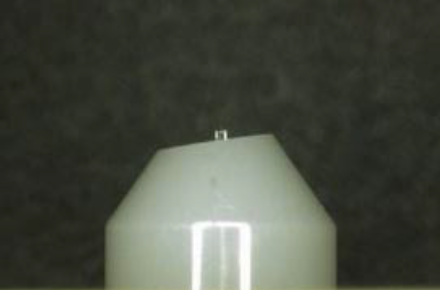

The connector has no splicing point. The fiber is penetrated through the ferrule and fixed by the fiber clamper, and the end face of the fiber is set to be protruded from the ferrule by around 70μm and is then polished on site to around 10μm by the field polishing tool.



fiber protrusion

field installable connector structure


Specifications

Applicable connector typesSC
Polished typesAPC, PC
Applicable fiber typesSingle mode, Multimode
Applicable cable types2mm or 3mm round cable
2mm x 3mm or 1.6mm x 2mm flat cable
Optical performanceAPC: Insertion loss ≤0.3dB, Return loss ≥65dB
PC: Insertion loss ≤0.3dB, Return loss ≥50dB
Multimode: Insertion loss ≤0.2dB, Return loss ≥25dB

Mechanical and Environmental Properties

TestConditionPerformance
Repeatability>50 times∆IL ≤0.2dB
RL ≥65dB (APC)

IL: Insertion loss
RL: Return loss
Traction cord10N, 120sec
Fall50cm, 10 times
Vibration10 to 55Hz, 0.75mm p-p, 90min
Cold-40°C, 96h
Dry heat75°C, 96h
Temperature cycle-40°C to 75°C, 16 cycles

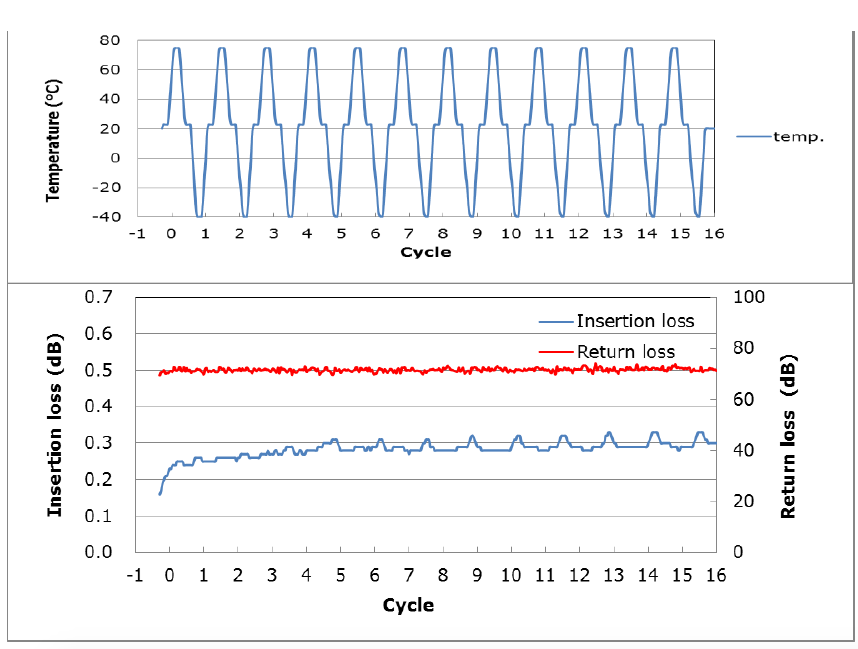

Temperature Cycle Test Results

temperature cycle test

Test conducted by NTT Advanced Technology Corp.

TOOLSETS AND COMPONENTS

field installable connectors

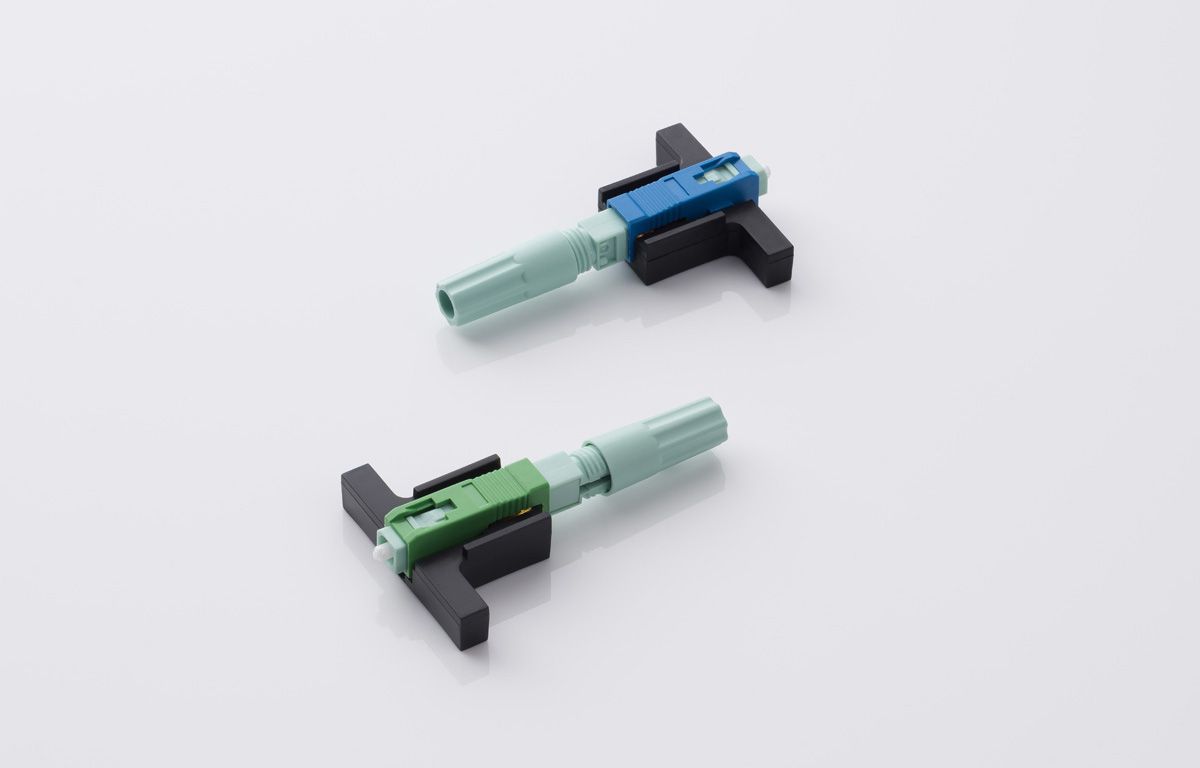

Field Installable Connector (SC/APC and SC/PC)



field installation tool kits

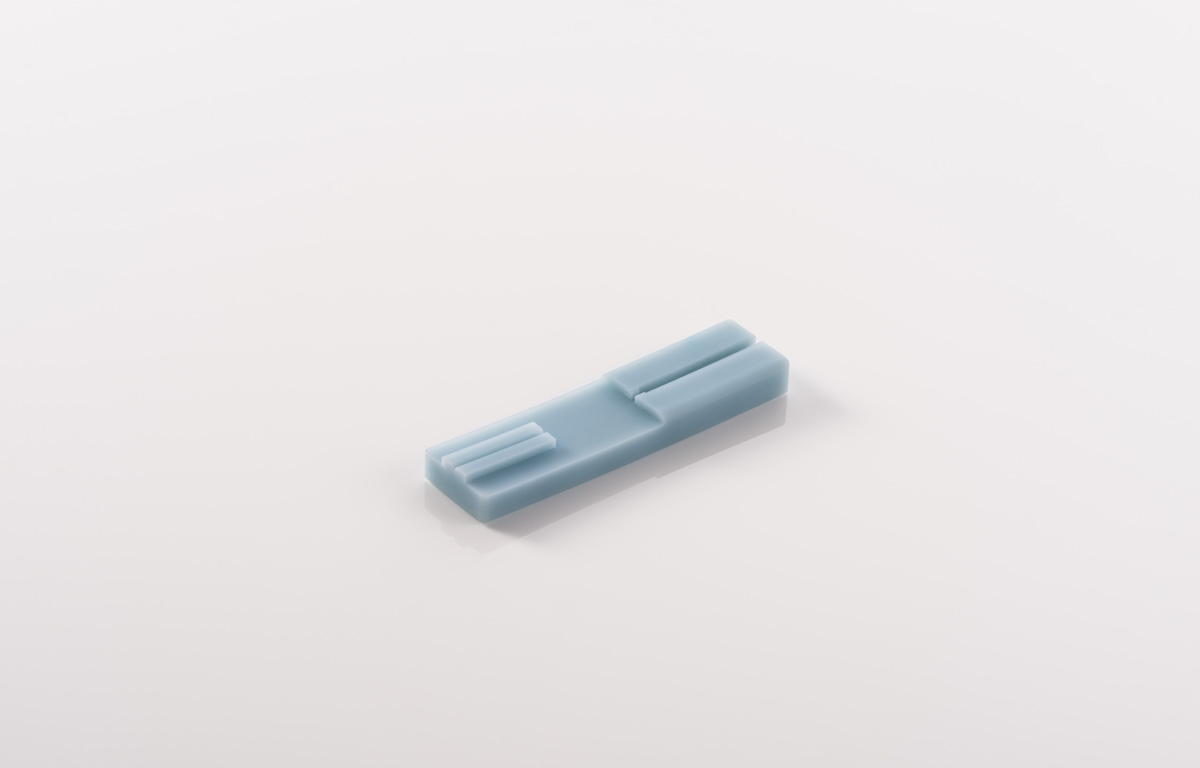

Cable Holder



field installation tool kits

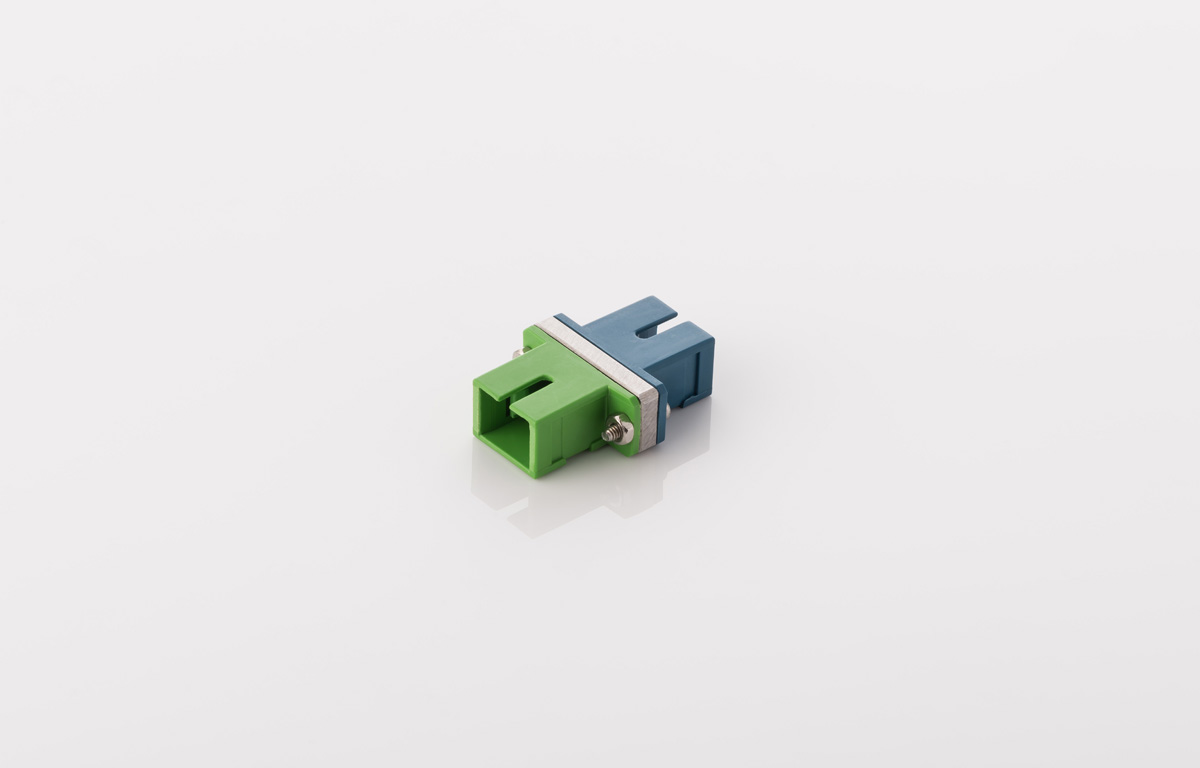

Butting Tool



field installation tool kits

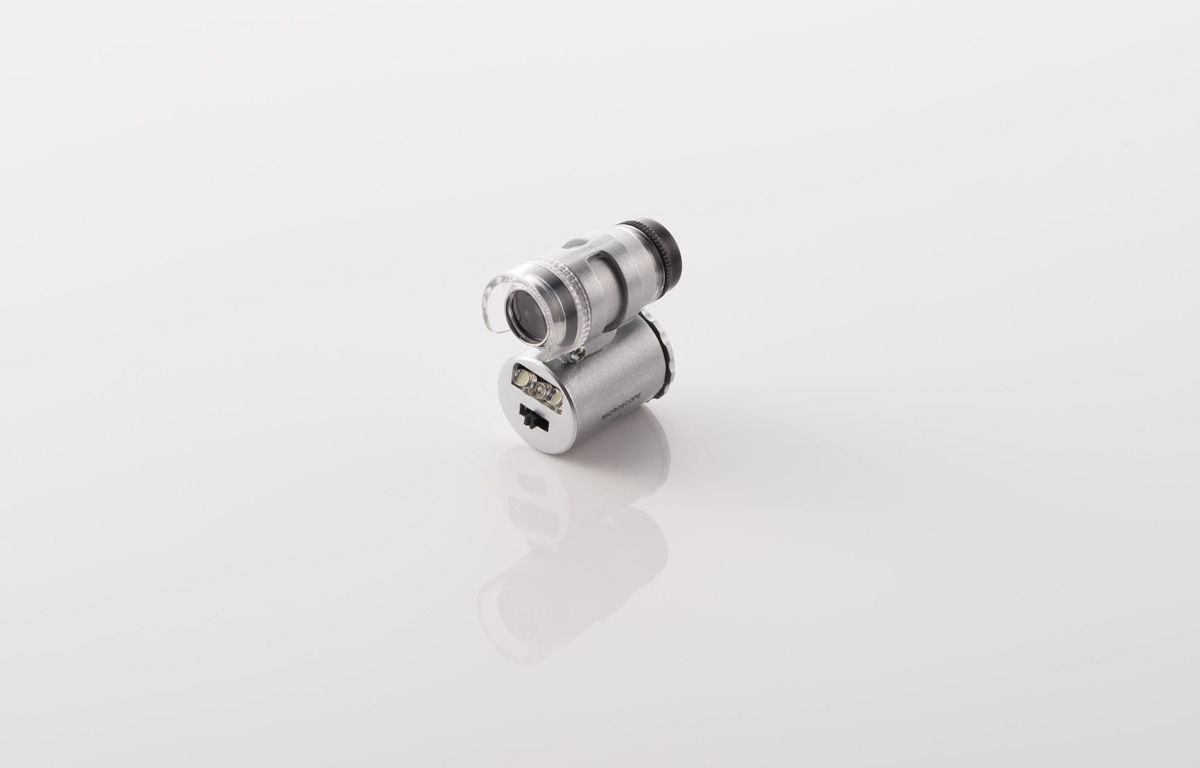

Loupe



field polishing tool

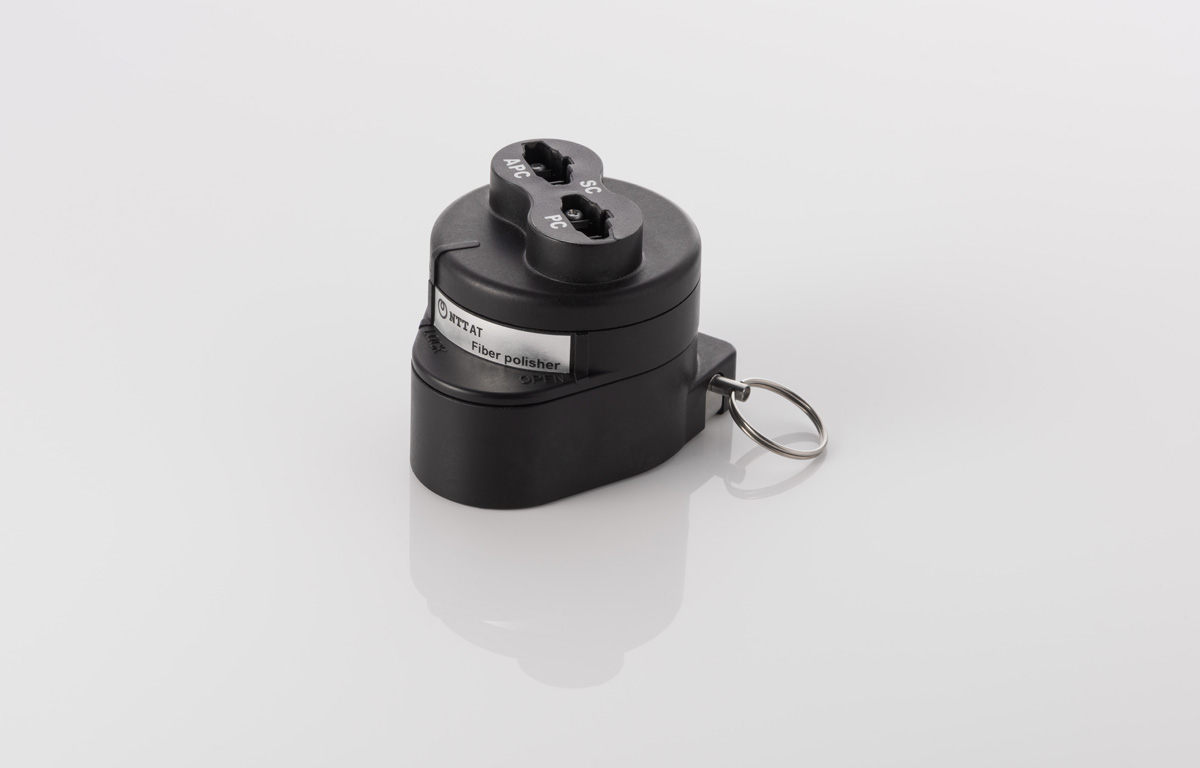

Field Polishing Tool



ASSEMBLING PROCEDURE

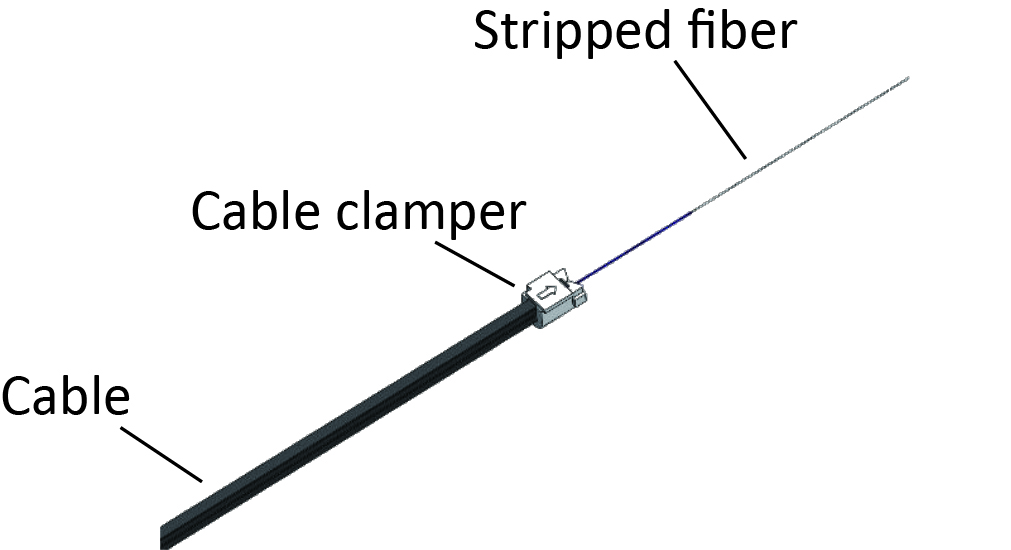

1. Cut the cable jacket, set the cable into the cable clamper, and strip the coating by the predetermined length.

field installable connector instructions

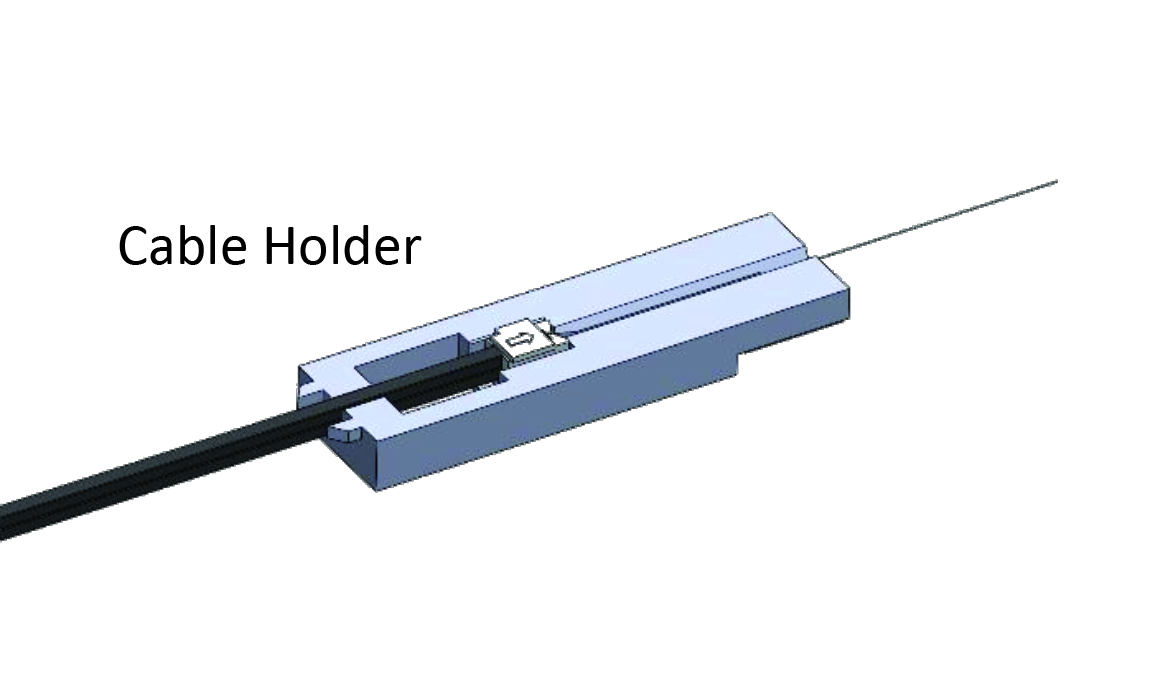

2. Set the cable clamper into the cable holder.

field installable connector instructions

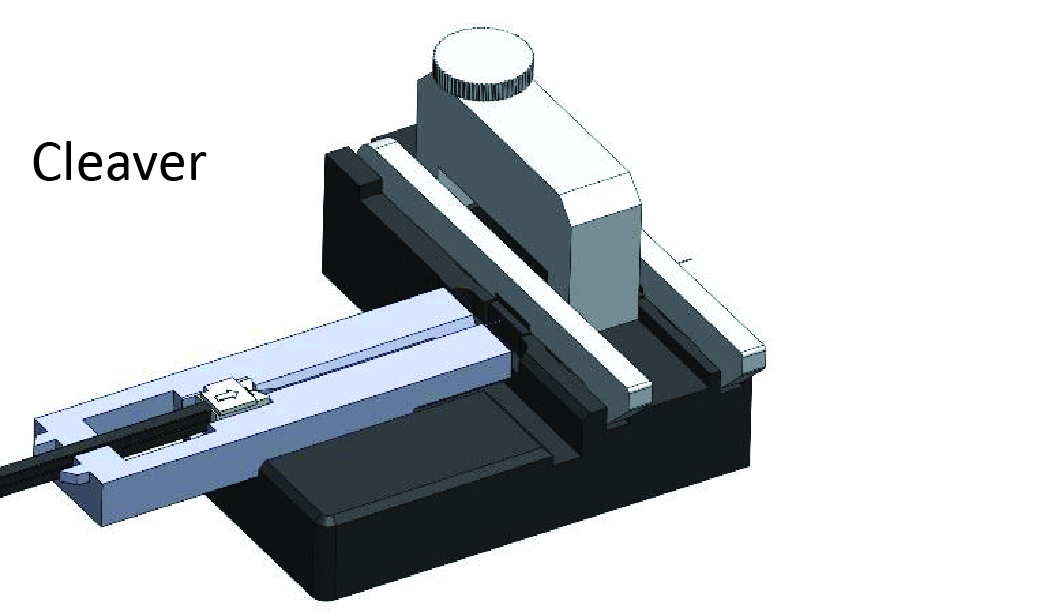

3. Use fiber cleaver to cleave the fiber by the predetermined length set by the cable holder.

field installable connector instructions

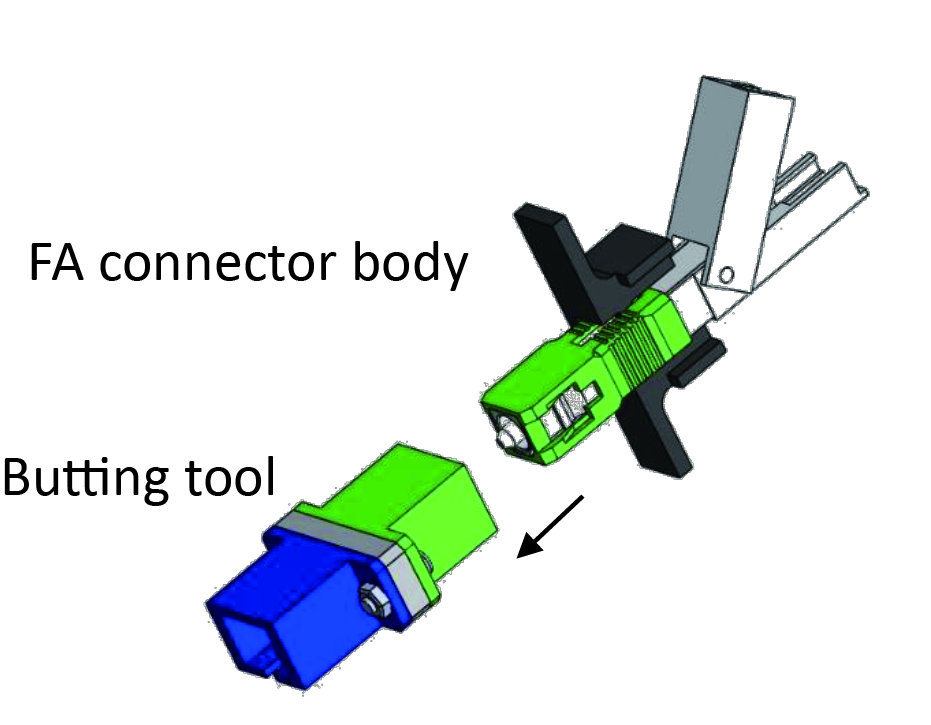

4. Connect the connector body to the butting tool.

field installable connector instructions

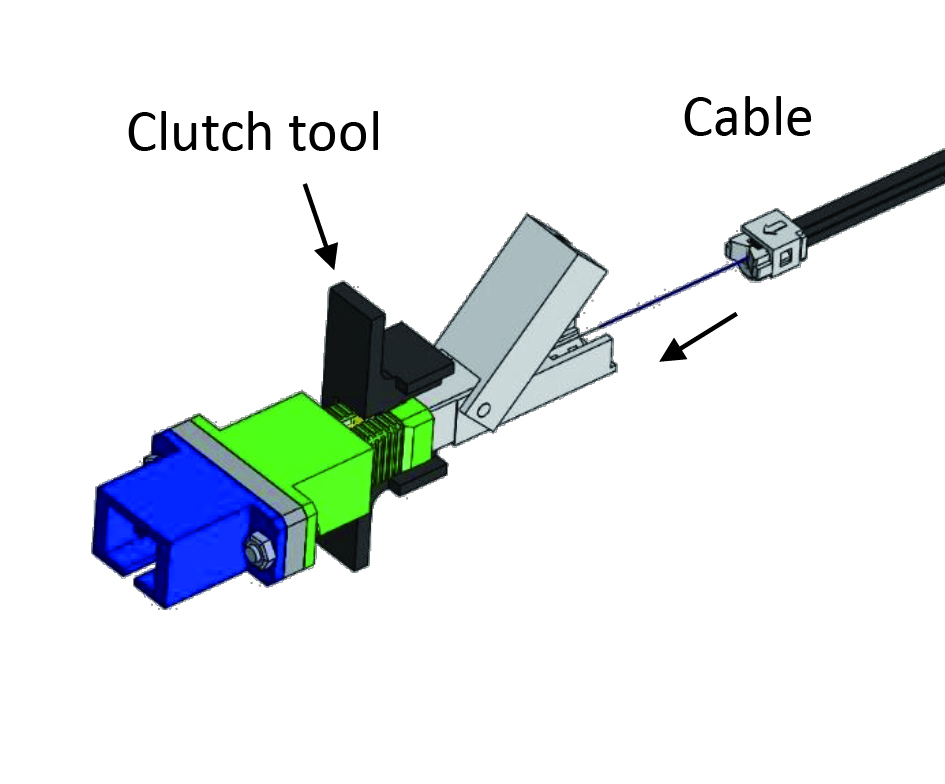

5. Insert the fiber (with its cable set by the cable clamper) to the proper position on the connector body, and clamp the fiber inside the plug by the clutch tool.

field installable connector instructions

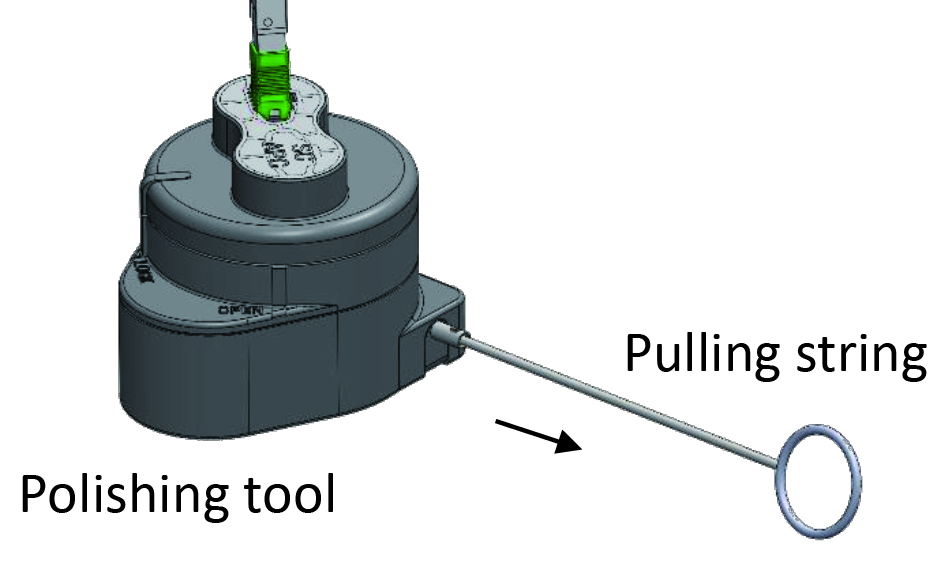

6. Connect the plug to the field polishing tool, pull the retractable drawstring all the way until its end, and complete the polishing by releasing the drawstring for it to retract to its original position.

field installable connector instructions

DATASHEET DOWNLOAD

USER MANUAL DOWNLOAD

NO POLISH TYPE FIELD INSTALLABLE CONNECTORS

field installable connectors

Applicable cable type:

2.0mm or 3.0mm round cable
1.6mm x 2.0mm or 2.0mm x 3.0mm flat cable

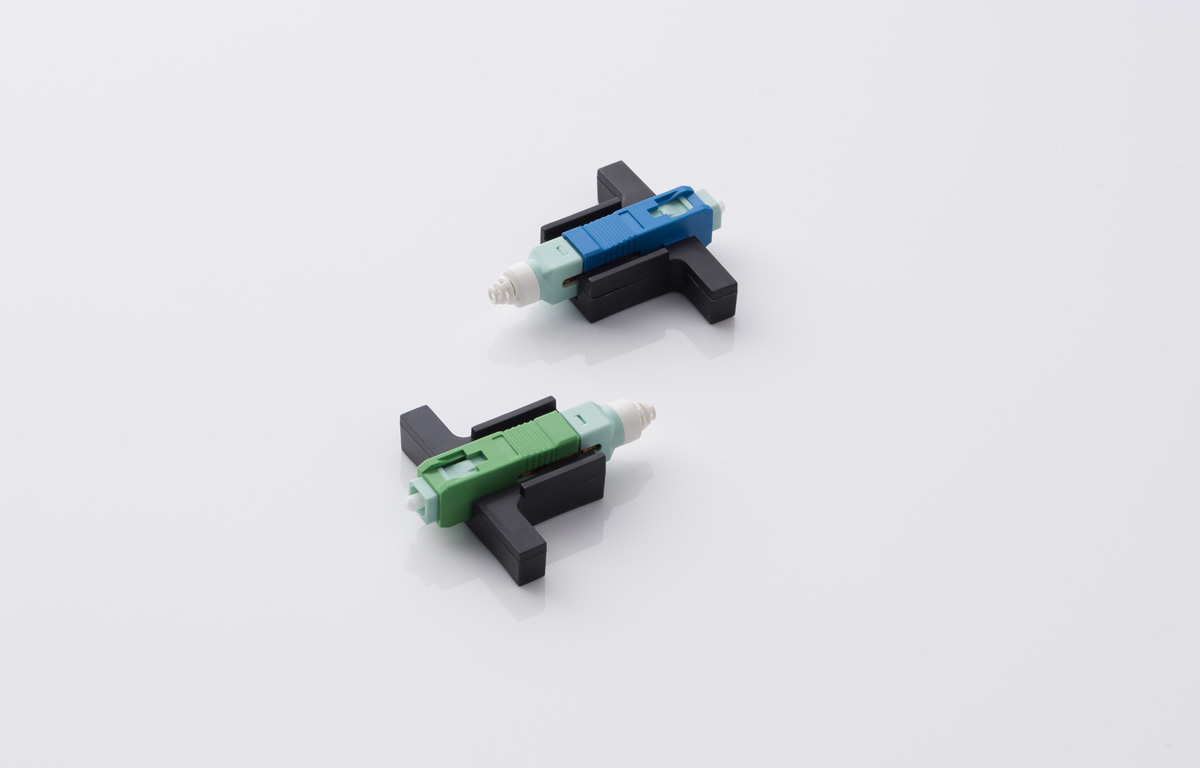

field installable connectors

Applicable cable type:

0.9mm round cable



FEATURES


Precise Fiber Alignment achieved by In-Ferrule Fiber Interconnection

The embedded fiber and the inserted fiber are mated inside the ceramic ferrule of field installable connector, with an accuracy of 1.0µm. The C-slot design realizes a very precise fiber alignment, and has strong adaptability for different outer diameter of embedded fiber and inserted fiber.



Exceptional Environmental & Mechanical Properties

Traditional field installable connectors use plastic V-groove as the vehicle for interconnecting two fibers. Our FICs use ceramic ferrule, whose the material has excellent compatibility with glass fiber and low thermal expansion coefficient, over a wide operating range (-40°C to 85°C). Compared with plastic, ceramic is more rigid, has stronger mechanical strength, and will not deform.



Matching Gel will not be Contaminated or Evaporate

Since the interconnection of two fibers is realized inside the ceramic ferrule, there is no risk of contamination or evaporation of matching gel.



Fast & Simple Assembly Procedure

Our field installable connectors are easy to be assembled by using a dedicated tool. Besides, the fiber insertion is very smooth, since the ferrule’s entry funnel will guide the fiber move forward easily.



PRODUDCT SPECIFICATIONS

Specifications

Applicable connector typesSC
Polished typesAPC, PC
Applicable fiber typesSingle mode, Multimode
Applicable cable types0.9mm, 2mm or 3mm round cable
2mm x 3mm or 1.6mm x 2mm flat cable
Optical performanceAPC: Insertion loss ≤0.4dB, Return loss ≥55dB
PC: Insertion loss ≤0.4dB, Return loss ≥40dB
Multimode: Insertion loss ≤0.2dB, Return loss ≥25dB

Mechanical and Environmental Properties

Assembly repeatability≥5 times
Average assembly time≤3 minutes
Life time30 years
Tensile strength30N for 2.0mm round cable
50N for 3.0mm round cable
50N for 2mm x 3mm or 1.6mm x 2mm flat cable
Operation temperature-40°C to 85°C


DATASHEET DOWNLOAD

USER MANUAL DOWNLOAD

PRODUCT APPLICATIONS

CENTRAL OFFICE
FIBER TO THE BUILDING
PON
DATA CENTER
FIBER TO THE ANTENNA
FIBER TO THE HOME
FIBER IN THE HOME
CATV
BASE STATION
WAN
LAN
SURVEILLANCE
INDUSTRIAL
HEALTHCARE
AUTOMOTIVE
DEFENSE
